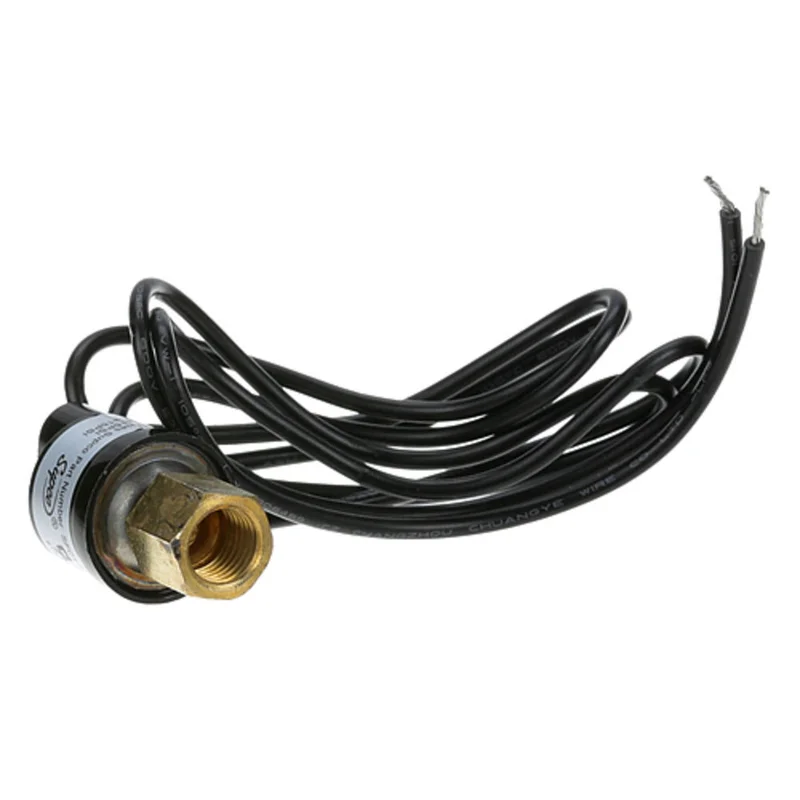

Allpoints FAN CYCLING PRESSURE SWITCH – Allpoints Part 421806

Description

Automatic Reset High, Low & Condenser Fan Cycling Pressure;Switches.;FAN CYCLING LO-PRES. OPEN 170 PSI, CLOSE 250 PSI, +/- 15PSI;High pressure SPST open on pressure rise;Low pressure SPST open on pressure fall;Condenser fan cycling SPST open on pressure fall.;1/4″ female SAE connection;Snap acting SS hermetically sealed sensor (SHP, SLP & SFC);Small size and light weight for direct mounting;Excellent set point repeatability/stability;Pressure range: 0 to 650 PSI, Burst pressure: 5000 PSI;Life @ rated load: 100,000 cycles;Rated voltage: 50/60 Hz., 24/120/240 V (6 RLA, 36 LRA);Temperatures: ambient 20F to 176F (-30C to 80C);Fluid 60F to 250F (-50C to 120C)
